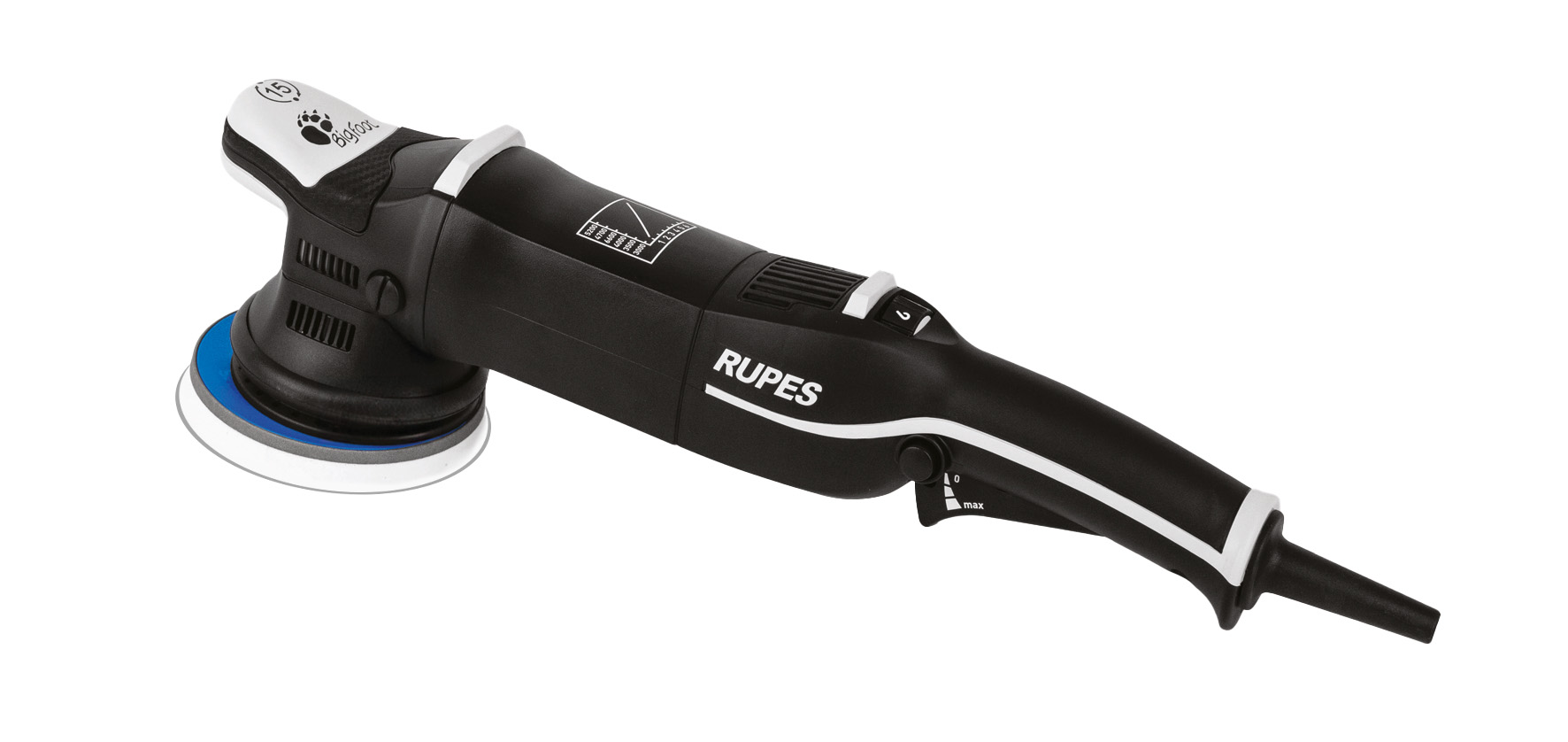

Random orbital polisher – Bigfoot LHR15 Mark III

brand_awareness Read It

LHR15III

Built to handle any detailing situation, the new LHR 15 MarkIII is the new frontier of detailing. The ergonomic design allows for precise paint correction with complete comfort, in curved surfaces and difficult to reach areas. The LHR 15 MarkIII operates at a higher rpm compared to the LHR21 MarkIII. This increased speed provides equivalent correction and does so with a pad diameter and orbit that are more conducive to curved or varied surfaces.

RANDOM ORBITAL: the backing plate follows an orbit (the amplitude of which depends on the distance between the rotation axis of the drive shaft and the central axis of the backing plate) and is free to rotate about its own central axis. The backing plate is free to rotate at varying velocities and directions by effect of the centrifugal force of the offset movement and by effect of friction. Should the friction forces be such as to prevent rotation of the disc while the tool is still operating, the random orbital movement would simply become an orbital movement. The number of disc rotations is variable and independent of the number of orbits performed. The random orbital movement is at present the best compromise in terms of effectiveness and surface treatment quality.

IMPROVED ERGONOMICS
The rubberized front grip of the MarkIII offers exceptional comfort for the operator while providing a non-slip surface for control. The improved rear handle also integrates rubberized surfaces for improved feel. Two strategically placed, non-marking, tool rests provide stability when the tool is not in use as well as additional protection against unintended impact. The continued refinement of the BigFoot random orbital platform in MarkIII reinforce its best in class reputation, making the best even better.

ELECTRONIC SPEED CONTROL DIAL
The new electronic speed control dial allows for easy adjustment of the top speed of the polisher without requiring the operator to move his hands. The larger dial is easily adjusted with a move of the thumb. High visibility numbers and a more positive feedback from the movement of the dial make speed changes feel more deliberate, allowing operators to select the ideal speed for the task without any interuption to the polishing process.

9 METERS ELECTRICAL CORD
The new Heavy Duty extra long 9mt cord is gauged to deliver maximum power to the polisher for safe, efficient operation. The longer cord save you time, steps and hassles since the user doesn’t have to use additional extension cords when polishing around a car.

PROGRESSIVE TRIGGER
Adding an additional layer of control is the new progressive trigger. Acting as a throttle to control speeds within the dial range, the progressive trigger allows the operator to make subtle adjustments for precise control without interruption of the process or need to reposition the grip to access the speed dial.

DESIGN
Attention to detail is something more than just attractive design. Every detail, such as the rubber support positioned on the body of the machine to keep it stable during the non-working stages, is the result of meticulous research aimed at achieving maximum operator comfort.

Downloads cloud_upload

EN IT FR DE ES
DiagramBrochure
ENITDEFRES
User manualUser manual USASatefy instruction
Random orbital polisher - Bigfoot LHR15III

Photos

Random orbital polisher - Bigfoot LHR15IIIRandom orbital polisher - Bigfoot LHR15III - lateral 2Random orbital polisher - Bigfoot LHR15III - lateral 1Random orbital polisher - Bigfoot LHR15III - backing - pad 2Random orbital polisher – Bigfoot LHR15 Mark III- Gallery photo 5Random orbital polisher – Bigfoot LHR15 Mark III- Gallery photo 6Random orbital polisher - Bigfoot LHR15III - application 2Random orbital polisher - Bigfoot LHR15III - application 1

Videos

Random orbital polisher – Bigfoot LHR15 Mark III - Gallery video 9Random orbital polisher – Bigfoot LHR15 Mark III - Gallery video 10Random orbital polisher – Bigfoot LHR15 Mark III - Gallery video 11

Available kits

LHR15III/STD

LHR15III/STD

Random orbital polisher (Ø125mm - Ø5”-15mm orbit)(LHR15III)

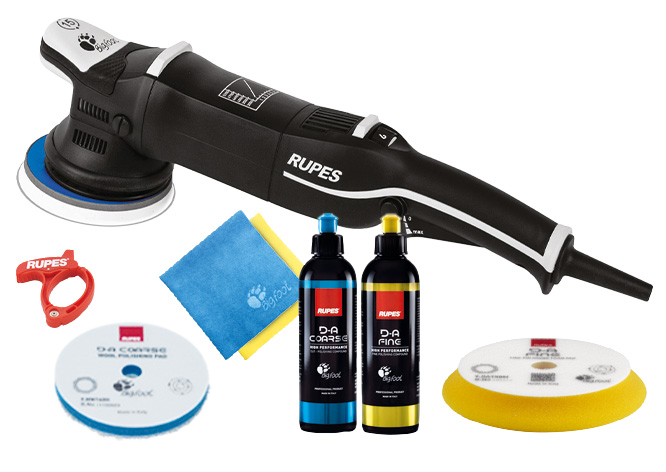

LHR15III/BAS

LHR15III/BAS

Random orbital polisher (Ø125mm - Ø5”-15mm orbit)(LHR15III)
D-A COARSE polishing compound 250ml(9.DACOARSE)
D-A FINE polishing compound 250ml(9.DAFINE)
Wool polishing pad COARSE Ø130 mm(9.NW130H)
D-A FINE foam polishing pad Ø130-150mm - Ø5”-6”(9.DA150M )
Microfiber cloth Blue( 9.BF9050)
Microfiber cloth Yellow(9.BF9060)
Cable Clamp(9.Z1024)

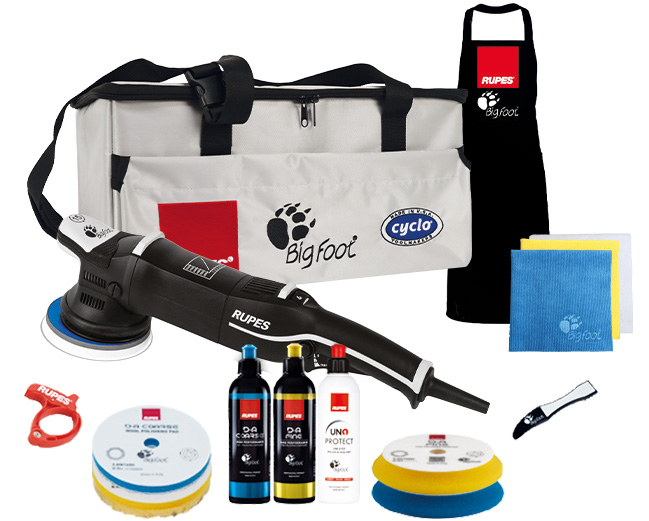

LHR15III/LUX

LHR15III/LUX

Random orbital polisher (Ø125mm - Ø5”-15mm orbit)(LHR15III)
D-A COARSE polishing compound 250ml(9.DACOARSE)
D-A FINE polishing compound 250ml(9.DAFINE)
UNO PROTECT One-Step Polish & Sealant 250ml( 9.PROTECT)
Wool polishing pad COARSE Ø130 mm(9.NW130H)
Wool polishing pad FINE Ø130 mm(9.NW130M)
D-A COARSE foam polishing pad Ø130-150mm - Ø5”-6”(9 .DA150H)
D-A FINE foam polishing pad Ø130-150mm - Ø5”-6”(9.DA150M)
Microfiber cloth Blue( 9.BF9050)
Microfiber cloth Yellow( 9.BF9060)
Microfiber cloth White( 9.BF9070)
Claw pad(9.BF7001)
Cable Clamp(9.Z1024)
BIGFOOT apron(9.Z868)
BIGFOOT tools bag(9.Z1043/BF)

Technical data

Ø backing pad (mm/in) 125/5″
Ø orbit (mm) 15-19/32″
Power (W) 500
R.P.M. 3000-5200
Weight (Kg/lbs) 2,6-5,73
Speed control
Backing pad thread M8-F
Electrical cord (m/ft) 9-30′

Available kits

LHR15III/STD

LHR15III/BAS

LHR15III/LUX
