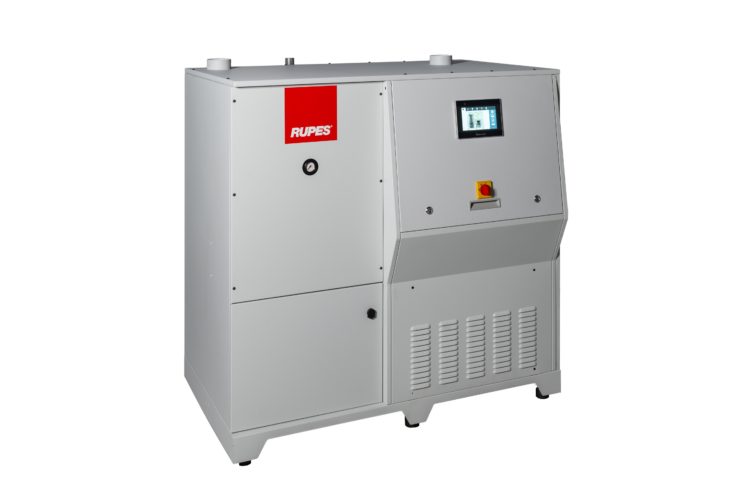

ATEX Turbine HE Intelligent Series 2,2-5,5KW
HE Series S ATEX
ATEX TURBINE is a centralized unit of category 3D, for Atex 22 zone, by suction of micro-dust generated during a polishing process or by various industrial processes.
The new 4.0 technology, with interconnected and interactive intelligent sensors and devices that can be managed remotely, has enabled the development and design of new touch screen control panels for managing the extraction unit. Through this latest generation device, the turbines are constantly monitored and controlled remotely, worldwide, directly by our specialized engineers who can see the operating status of the machine in real time, optimize extraction performance according to the customer’s requirements and plan scheduled remote maintenance to prevent faults and to solve them remotely if they occur.
Excellent vacuum performance, High reliability (up to 20.000 hours without maintenance), High filtering efficiency (99.5% with micro-dust with 0.3 [μm] dimensions). Cyclonic pre-filtration system and filter cartridge protection. Electronic control panel for managing Centralized Dust Extraction System;.
Easy and fast extraction of dust container with automatic and pneumatic lifting system. High dust container capacity: 50 [L].
Photos
Versions
HE201SATEX 2,2kW
HE501SATEX 3KW
HE901SATEX 5,5KW
Technical data
| HE201S | He501S | HE901S | |
| Pump side channel technology | • | • | • |
| Electric supply (ph) | 380V 3ph | 380V 3ph | 380V 3ph |
| Power (W/hp) | 2200/3 | 3000/4 | 5500/7.5 |
| Weight (kg) | 130 | 135 | 170 |
| Vacuum level max (mmH2O) | 2900 | 2900 | 2900 |
| NoisedB (A) | 65 | 65 | 70 |
| Tank capacity (l) | 50 | 50 | 50 |
| Flow capacity (m3) | 320 | 390 | 550 |
| Filter surface (m2) | 4 | 4 | 8 |
| Tools | 2 | 3 | 5 |
| Working pressure (bar) | 6 | 6 | 6 |
| Intelligent Display Size [in] | 4.3 | 4.3 | 4.3 |
| Automatic filter cleaning | • | • | • |
| Manual filter cleaning | • | • | • |
| ID vacuum nozzle (mm) | 75 | 75 | 75 |
| Size (hxwxd) (cm) | 138x98x55 | 138x98x55 | 138x98x55 |
| Motor control section | • | • | • |
| Filter control section | • | • | • |
| Technical info section | • | • | • |
| Remote diagnostics | • | • | • |
| Remote control | • | • | • |
| LAN connection | • | • | • |
| Atex Zone 22 | • | • | • |
