Control Unit Tower

Terminals

PT Series

Service terminal for extracting micro-dust generated during a sanding process or different industrial processes and for connecting pneumatic and electric tools.
Design to support 2 users;
Automatic electric sockets for tools;
Automatic compressed air connections for tools;
Service electric plugs;
Regulated compressed air connection;
Manual and Automatic remote start-up of the centralized vacuum system;

PT202A – PT102A
Manual Cut-Off System:
manual closing and opening of suction connections.

PT202C – PT102C
Automatic Cut-Off System:
Automatic closing and opening of suction connections.

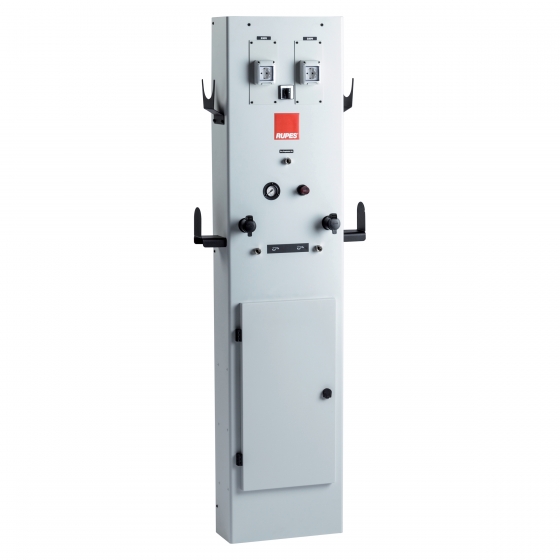

PT202A – PT202C
Wall mounting:
Cabinet for storage tools and consumables.

Downloads cloud_upload

EN IT FR DE ES
CONTROL UNIT TOWER PT202A EP AUTOSTART

Photos

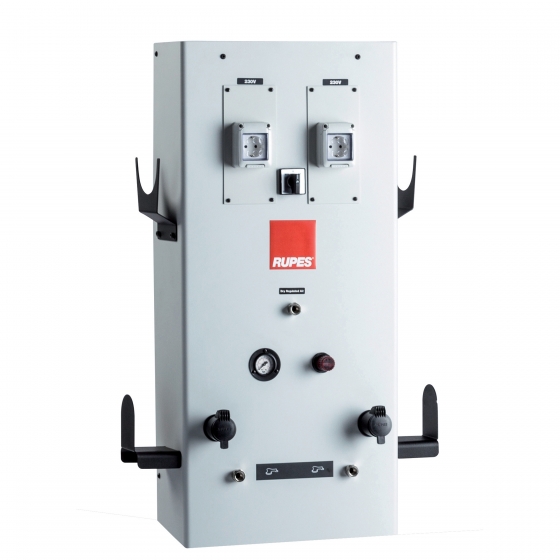

CONTROL UNIT TOWER PT202A EP AUTOSTARTCONTROL UNIT TOWER PT102A EP AUTOSTART

Versions

PT202A

PT202A

PT202C

PT202C

with cut-off
PT102A

PT102A

PT102C

PT102C

with cut-off

Technical data

PT202A PT202C PT102A PT102C
Weight (kg) 33 33 22 22
Size (cm) (HxWxD) 180x60x22 180x60x22 93x60x22 93x60x22
Tool electric sockets 2 2 2 2
Air quick coupling tools 2 2 2 2
Service air quick coupling 1 1 1 1
ID Vacuum nozzle (mm) 2×50/2×34 2×50/2×34 2×50/2×34 2×50/2×34
Tools 2 2 2 2
Automatic start-up • • • •
Automatic Cut Off • •

Versions

PT202A

PT202C

PT102A

PT102C
